Instructions
Assembly, Deployment, and Retrieval

Mark My Mooring is easy to assemble and deploy!

Mark My Mooring Full Kit, the only tool you need is a screwdriver.


Important

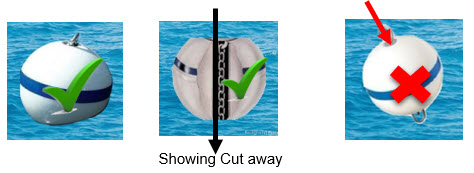

Your mooring ball needs to have a hole in the center for Mark My Mooring pole to slide into. You can always convert the hardware to expose the hole in your mooring ball.

Assembly

Watch the Assembly Quick Start Video

Step 1

Familiarize yourself with your parts.

a) 3 - Marine Grade Poles
b) 3 - Marine Grade Ferrules (top pole has swivel eye attached)
c) 2 - Orange Protective Foam
d) 1 - Windsock (per your selection)
e) 2 - Velcro Straps
f) 1 - Carry Bag
g) 2- Protective Foam Caps
h) 6 - Marine Grade Hose Clamps


Step 2

The only tool you need is a Screwdriver.

Step 3

Three Ferrule and Poles. The Ferrules slide on to the Poles. The top Ferrule has the built in swivel, the other two Ferrules are identical. They should already be on the Poles, but if give them a tug they will slide off and are easy to place back on.

Step 4

Three Poles attached with Ferrules. The top Ferrule with the swivel push fully on. The other two Ferrules go in 50% to allow the two rods to connect and meet in the middle of the Ferrule.

Step 5

Two Plastic Caps to Cap Off Foam Protectors.

Step 6

Placing Plastic Protective Cap on Top Pole.

Step 7

Six Hose Clamps, pre-open them so they slide easily on to the Poles and Ferrules.

Step 8

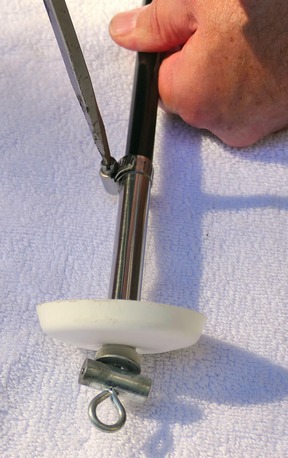

For Mark My Mooring - Securing Hose Clamp to Top Ferrule to the Top Pole.
Ensure you tighten it very well, test it, by pulling on it!
For Mark Your Spot - Please see 4A Instructions below as the Hose Clamp is moved up to the Protective Plastic Cap

Step 9

Securing Middle Pole with a Hose Clamp to Middle Ferrule Bottom. Ensure you tighten it very well, test it by, pulling on it!

Step 10

For Mark My Mooring - Securing Middle Pole with a Hose Clamp to Middle Ferrule Top. Ensure Ensure you tighten it very well, test it, by pulling on it!
For Mark Your Spot - Please see 5A Instructions below as you do not need this Hose Clamp, which allows the Pole to separate for easy transport.

Step 11

Securing Bottom Pole with a Hose Clamp to Middle Ferrule Bottom. Ensure you tighten it very well, test it by pulling on it!

Step 12

For Mark My Mooring - Securing Bottom Pole with a Hose Clamp to Middle Ferrule Top. Ensure you tighten it very well, test it by pulling on it!
For Mark Your Spot - Please see 5A Instructions below as you do not need this Hose Clamp, which allows the Pole to separate for easy transport.

Step 13

Protective Foam being placed on Pole.

Step 14

Second Protective Foam being placed on Pole.

Step 15

Starting to Place the Bottom Plastic Protective Cap on Bottom Pole.

Step 16

Place Hose Clamp on Bottom Pole and Tighten. Ensure you tighten it very well, test it, by pulling on it!

Step 17

Second Plastic Protective Cap for the Foam is in place on the Pole.

Step 18

Windsock, you may have choosen a differnt design.

Step 19

Swivel at the Top of the Pole.

Step 20

Attaching Windsock to the Swivel.

Step 21

Attaching Windsock Quick Connect to Swivel.

Step 22

Windsock attached to Swivel.

Step 23

Velcro Straps.

Step 24

First Velcro Strap Being Wrapped on Protective Foam. The Velcro allows you to secure the loop to the bottom of  your boat railing, which will secure your Mark My Mooring to your boat.

Step 25

Second Velcro Strap Being Wrapped on Protective Foam. The Velcro allows you to secure the loop to the bottom of  your boat railing, which will secure your Mark My Mooring to your boat.

Step 26

Velcro Strap Wrapped on Railing Upright. Ensure you have choosen a safe location to avoid any tripping hazard!

Deploy and Retreive Video

Watch the Deploy and Retreive Quick Start Video

Deploy

Step 1

Deploying your Mark My Mooring is simple to do. We keep it tethered with the Velcro Straps to the side of the rail, for easy storing and deployment.

Step 2

Simply unhook the Mark My Mooring (the Velcro straps remain attached to the base of the bow rails).

Step 3

Place the bottom base of Mark My Mooring into the center of the Mooring Ball, if you have a larger mooring ball, and need more stick, just shorten the protective orange foam, move your white plastic cap up and secure with the hose clamps. This allows you to have more stick to place in the mooring ball.

Step 4

The Mark My Mooring is strong, light and easy to handle. Make sure your balance and footing is solid and it's best not to have other crew close by, as you deploy the marker. Safety First!

Step 5

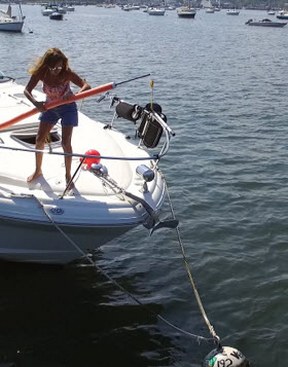

Yes, it looks like I’m getting ready to spear the mooring ball but with a little practice, your aim will be great! Don’t forget to SINK this pole into the mooring ball, not just a few inches in, it needs to be inserted at least 12” to 18” in order to stay secure!

Step 6

Sometimes, it’s a reach, but the captain can easily pull forward to bring me closer to the mooring ball so it isn’t such a reach. Here, I CAREFULLY hold onto the rail, as I am reaching a bit, just to show how easily it can be done.

Step 7

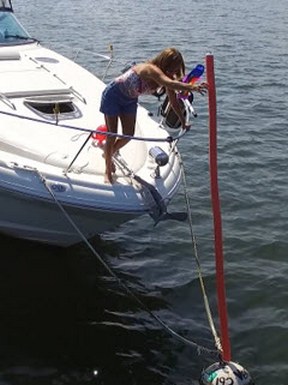

Now that my Mark My Mooring is in place, I can let go of my bow lines.

Step 8

The wind here makes it easy to show how nice the windsock is, and how easy it will be upon our return to see our mooring, differentiated from all the other moorings out there!

Step 9

Another succesful deployment of the Mark My Mooring.

Retrieval


Step 1

Another succesful deployment of the Mark My Mooring.

Coming back to base, Mark My Mooring makes it easy to see the wind direction. You always want to head "INTO" the wind as you go to retrieve your Mark My Mooring. You can see how easy it is for the Captain to head toward, and keep our bow right on the mooring, especially since he can’t see the ball. It’s a bit windy here but with Mark My Mooring, the Captain can pull right up, giving me an easy opportunity to grab the lines with lots of room to manuver. No longer do I have to fight to pull taut lines in, or yell directions back to the Captain who can’t hear me anyway in the wind!


Step 2

Coming in closer ready to grab the lines with telescoping boat hook. Again, the windsock takes the guess work out of which way the wind is heading.


Step 3

Easy grab with the telescoping boat hook, as the boat is perfectly lined up with the mooring.


Step 4

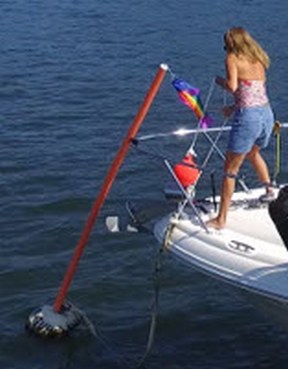

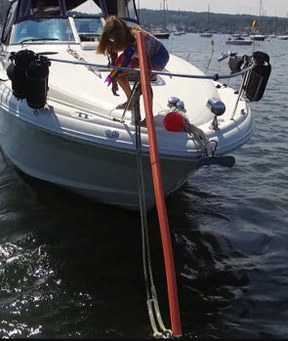

See how he keeps the bow right up against the Marker? He doesn’t need to “GUESS where the mooring ball is” and I have plenty of slack to work with the lines.


Step 5

I can slowly and confidently attach the slack line to the cleat without tugging or pulling to hang onto the line, and without having to look down to direct the Captain as to where the mooring ball is.


Step 6

To provide more slack, just gently navigate so the Maker is on the side to be tied up first, in this case the starboard side. Then pivot if needed to bring the nose of the bow around to the port side.


Step 7

Gently navigate to center or to Port, so the Maker is on the side to be tied.


Step 8

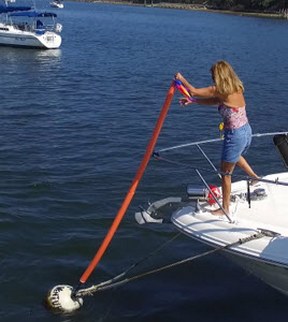

After attaching the lines to the bow, I remove the Mark My Mooring and secure it back onto the bow rails using the Velcro, till next time!


Step 9

Returning the Mark My Mooring to its storage place!


Step 10

Store the Marker in its place using the two Velcro Straps provided with the kit.


Accessory Pack Instructions to Convert to a Mark Your Spot™ Land Marker
Use at the Beach, Party, Sporting Event, Concert, Tailgating, and a Picnic in the park with the Ground Stake and Swivel Arm
Accessory Pack.

We’ve all been there! Turns out that small gathering you thought would be easy to find your way back to your spot, ends up being a bigger challenge than you thought! Finding your blanket, your family and friends is not so easy at times!  Mark your spot, it's easy! Just stake your spot, and never be lost again!


Now you'll be able to use your Mark Our Spot™ at the beach, lake, sporting events, picnics, fundraising events, parties at your home, concerts, snorkeling, windsurfing, scuba diving, paddleboarding, kiteboarding, surfing, fishing, and boating, so you can easily locate your beach chairs, towels and cooler, on your way back from the water or the concession stand. For the wind sports you'll be able to easily know the wind direction.

No more searching for your spot!!  Great for the kids to find their way back to you! Great for friends to locate your home for parties and gatherings, just mention on your invitation to look for the Windsock out front.



Ah the lazy days of summer, filled with sporting events, lazy days at the beach, concerts and picnics! Whether you are swimming in the ocean, or walking to a concession stand, we seem to gravitate away and end up at a slightly different place from where you began! With Mark Your Spot™ Land Marker, there is NO NEED TO WORRY or Panic! Mark Your Spot™ has you covered! Just Mark Your Spot™, and easily see your windsock and pole from hundreds of feet away! Even from the ocean, you can spot your marker and swim closer to it! A GREAT marker to keep your kids feeling safe and secure, when you stake out your spot, and say to the kids, THIS is where we MEET! Obviously not a substitute for keeping a CLOSE eye on your little ones, but for older kids, this is ideal! Easy assemble and disassembly, makes this easy to carry in your car.

Important: Stay Away from Power Lines that are Overhead and Utilities that are Buried! The pole stands approx. 10+ feet, (approx. 3.048+ meters) in height with the ground stake attached and not inserted in the ground.

Safety First!

Step 1A

Ground Stake and Swivel Arm Accessories.

Step 2A

Threading in the Swivel Arm, into the built in Pole Swivel.

Step 3A

Attaching Windsock to Swivel Arm ensures in low wind conditions the Windsock is highly visible.

Step 4A

Move the Hose Clamp, up to the Protective Plastic Cap. This allows the Ferrule to slide on and off the Fiberglass Pole, so you can easily attach and remove the two Protective Foam Units. Plus, it secures the Protective Plastic Cap from potential loss.

Step 5A

Please use just one Hose Clamp on each Ferrule for the Middle and Bottom Pole. This will allow you to slide the Poles out of the Ferrule. Assembly and Dismantling of your Mark Our Spot is easy and allows the three poles to be condensed for easy carrying and placing Mark My Mooring into your vehicle. The longest pole is approximately 42 inches when disassembled.

Step 6A

Pole going in Ground Stake.


Step 7A

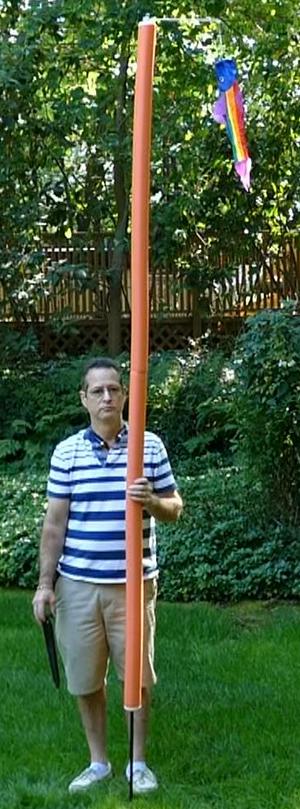

The assembled Pole and the Ground Stake is ready
to be installed.

Step 8A

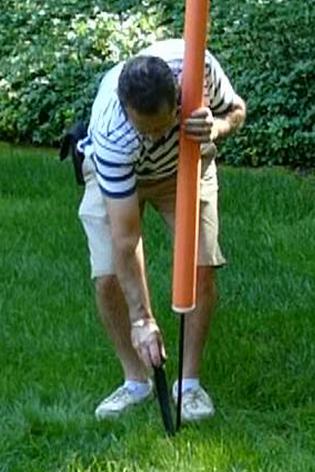

Install the Ground Stake, ensure it's straight.

Step 9A

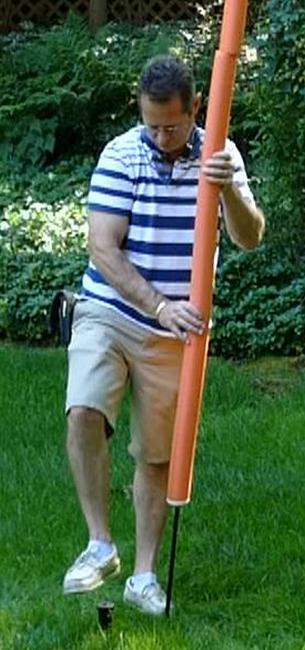

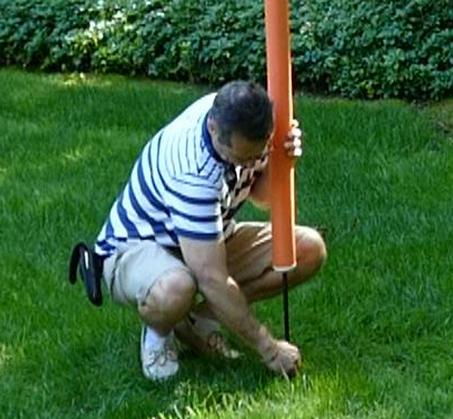

Stamp down the Ground Stake, with your foot or mallet, ensure it's deep in the ground, for safety.

Step 10 A

Install the Pole into the Ground Stake.
Secure Pole by tighting the Thumb Screw on the Ground Stake.

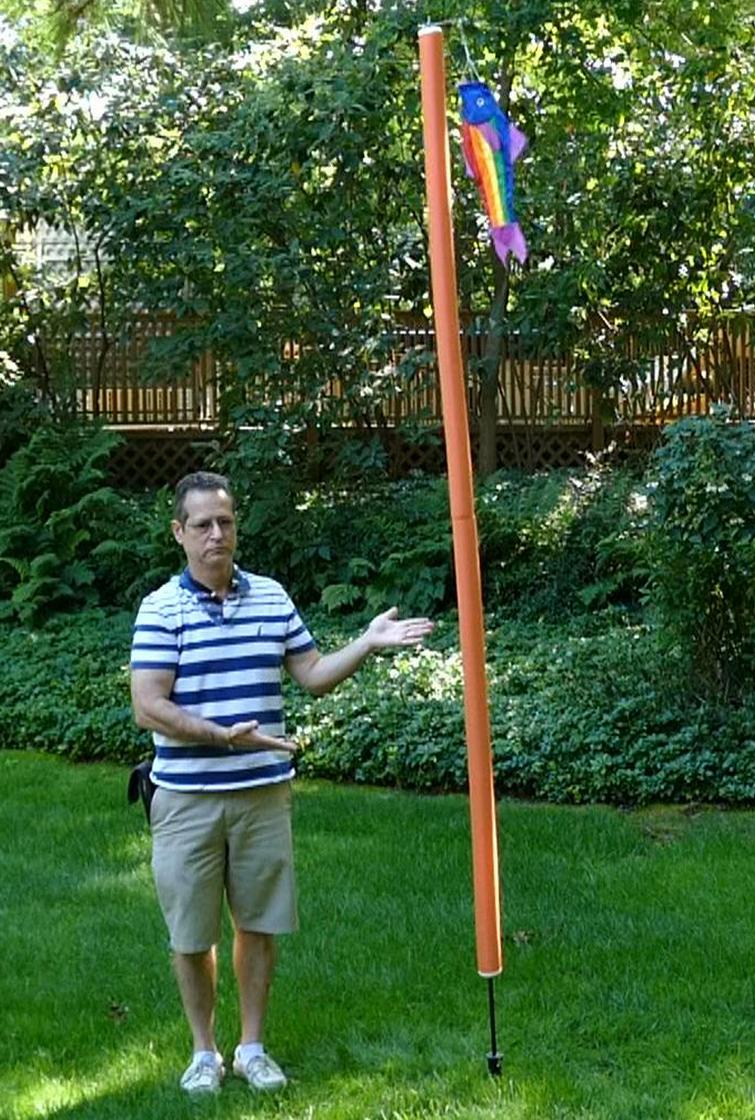

Completed

Congratulations you've successfully added the Accessory Kit.

Important

Return all Hose Clamps back to their original positions on the Ferrules when using Mark My Mooring on your boat, so the poles stay secure. Ensure you tighten the Hose Clamps very well, test by pulling on each of the three Poles!
